Quick Details

  • Type: Other Heat Insulation Materials
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Star
  • Model Number: customized
  • Material: al foil/epe/al foil
  • foam color: red,green,orange,blue and so on
  • foam density: 28kg/m3
  • Test: R value and fire proof
  • coating: silver ,blue ,orange an so on
  • thickness: 3-20mm
  • emissivity: 0.03-0.09
  • max width: 1.5m
  • roll length: customized
  • roll size: customized

Packaging & Delivery

Packaging Details Packed with PO bags.
Waterproof thermall emergency foil mylar thermal blanket
Delivery Time 11days



Waterproof thermall emergency foil mylar thermal blanket



Product Description

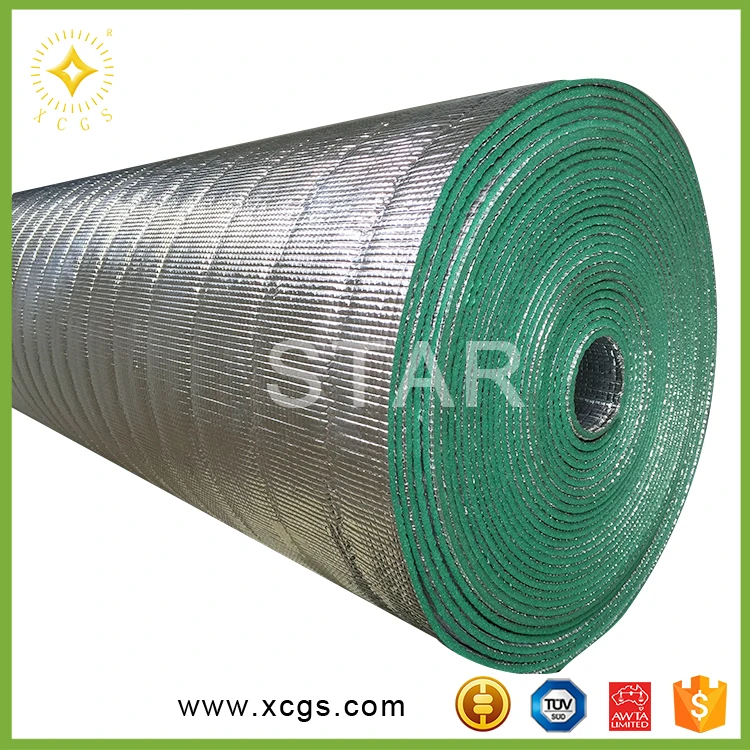

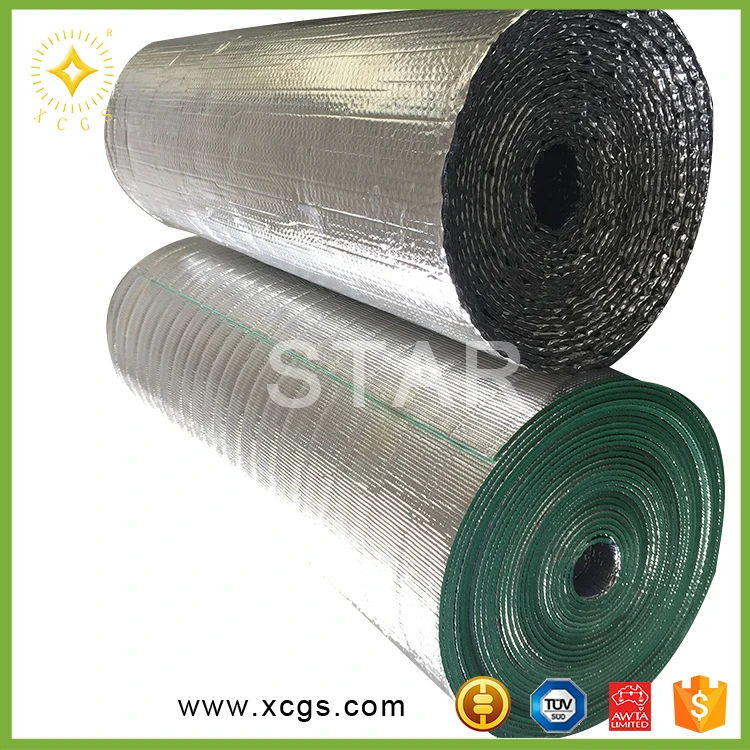

Foil Faced EPE Foam Insulation Material

      Our Foil Faced EPE Foam Insulation Material for construction is a brand new heat insulation product manufactured of polyethylene EPE Foam faced with  aluminum foil on two sides.It reflects  90 percent of the radiant heat and  reduces  energy  costs  used  in   winter heating  and  summer cooling.Reflective Foil thermal insulation is 7 micron thick, its two sides of aluminum foil reflects more than 90 percent  of  the  thermal  energy  that  reaches  it. In summer, almost all the sunlight and heat is bounced back into the air, keeping the heat out of the air conditioned building.

       In winter, almost all the heat generated inside the building is retained. Also, the bubble between the  aluminum  foil  offers  thousands  of  empty  air  cells,  which  makes  the  heat more difficult to pass through.

      Regular Specification:

   Foil/EPE Foam / Foil

   Foil: 2 layers / 3 layers  Aluminum Foil or Metallized Foil

   EPE Foam:26-28KGS/M3

   Color: white, green, orange, blue etc.

   Thickness: 3mm-25mm

   Size: 1.2(W)*40(L)M          size can be customized

        Functions:

     It can be installed on roof, wall or floor etc. It  can  resist  over 90% heat outside the building and protect

  the building from shock and sudden change of the temperature.

     We  can  add  woven  scrim  to  make  it  stronger&more  durable  according to clients requirement. It  has  good  function  on sound absorption.

        Characteristics:

  •  No odor and toxicity, environmentally-friendly
  •  Light, soft, dust free, fire retardant and easy to install
  •  Heat reflection, heat insulation, sound insulation, counter radiation, counter vibration and shielding
  •  During Summer: moisture barrier, sun protection, waterproof, energy saving consumed by cool air conditioning
  • During Winter: heat protection, remarkable energy saving consumed by warm air conditioning

       Usage:

  •  Roof, wall, floor
  •  Shells of air conditioning and water heater

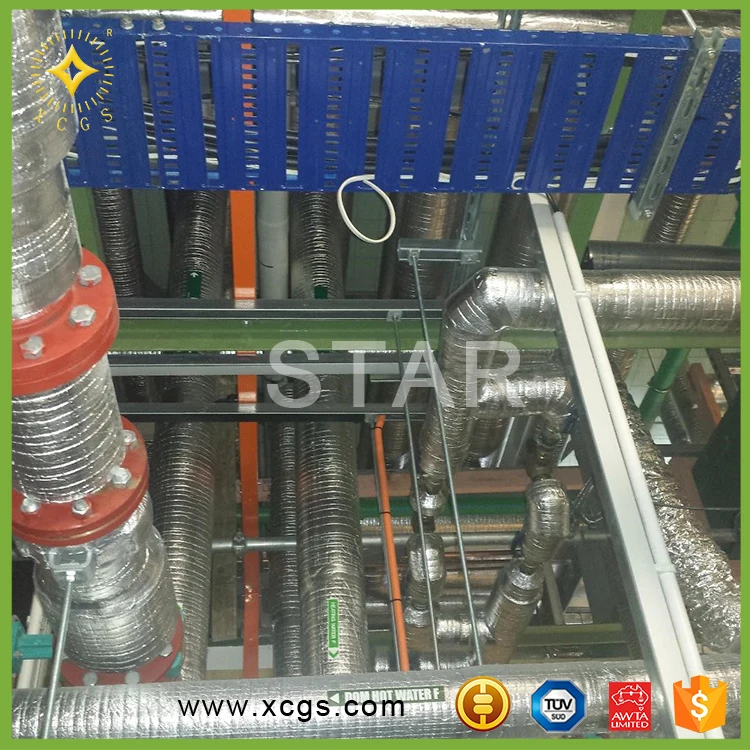

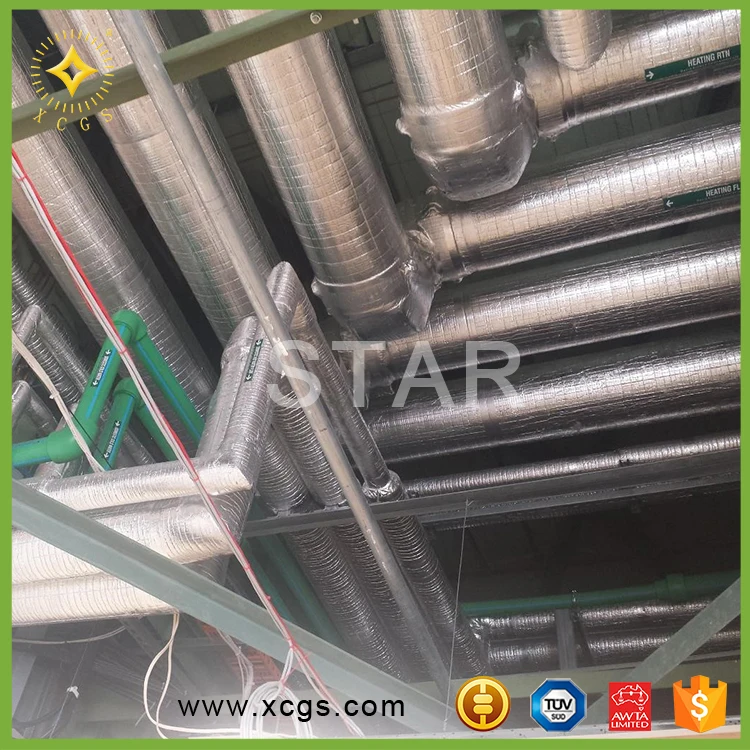

  • Protective coatings of water pipe and ventilating pipe
  • each Pads, Moisture-proof Pads, Tents Pads, Car Pad etc.
Product nameAluminum Foil Foam Insulation,Foam Thermal Insulation, Foam Heat Insulation,Reflective Foil Foam Insulation
Main MaterialAluminum Foil, Meatllic foil, EPE FOAM, Woven cloth
Material StructureMPET+EPE
MPET+EPE+MPET
Aluminum Foil+EPE
Aluminum Foil+EPE+Aluminum Foil
Colorful Coating+Aluminum Foil+EPE+Aluminum Foil
Colorful Coating+Aluminum Foil+EPE+woven cloth+AL
AL+Woven cloth+EPE+ Woven cloth+AL
EPEcommonly known as Zhen Zhumian to high-density polyethylene (LDPE) as the main raw material, through physical foam generation high-pressure polyethylene foam products
Normal Foam Thickness4mm,5mm,6mm,6.5mm,8mm,10mm, also can be customized
Foam ColorBlue,Green,Red,Orange,white, black and also can be can be customized
Product thickness3-20mm
HS Code76072000
Reflectivity97%
Normal Roll Size1.2m*30m/roll,1.2*40m/roll,1.35*22.25m/roll,also can be customized
Packing1roll/pe bag, pe bag can be printed customized
Original Certificatesuch as Form A, Form E ,etc that is available



temperature range

-50 degrees C to 80 degrees C

Security

Non-toxicity,non-corrosiveness

Operation

It is easy to operate and can raise working

 efficiency.

Pliability

No cracking.

Durability

It will not degrade over time.

Mold and mildew

No growth

Linear shrinkage

None
